Sector-ii

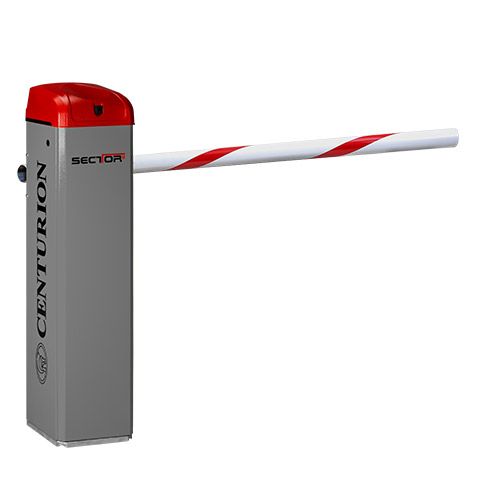

SECTOR II – HIGH-VOLUME INDUSTRIAL TRAFFIC BARRIERS

Introducing the heir to the throne of high-volume vehicular access control. With an updated look that perfectly matches its superior performance, an optimized design for the ultimate in ease of installation and boasting the awe-inspiring speed that made its predecessor king of the access control jungle, the SECTOR II is the embodiment of automation evolution.

Available on backorder

Category: Tag:

Description

MAIN FEATURES:

-High-volume capability
-Battery backup.
-Rapid boom pole raising (3-meter version < 1.2 seconds). -Smooth, intelligent speed control. -High-torque boom pole operation. -Robust, durable, and slimline operator casing. -LCD user interfaces for simple setup. -Onboard Centurion code-hopping multichannel receiver with selective add and delete. -Integrated ChronoGuard timer functionality. -Pre-galvanised enclosure improves corrosion resistance (of mild steel variant). -Electronics reside at the top of the enclosure for easy access. -Powder-coated aluminum – with condensation shield – lid gives the unit an updated appearance and protects electronics from moisture damage. -Improved cable routing and securing make for a neat and tidy installation. -Easy to achieve AC and DC isolation. -Available in three stunningly beautiful colors, all sporting the striking crimson crown. Please note that a price premium applies to the gunmetal grey variant. MODELS:

SECTOR 3 – Rapid speed high-volume barrier, 3m boom pole.
SECTOR 4.5 – Standard speed high-volume barrier, 4.5m boom pole.
SECTOR 6 – Standard speed high-volume barrier, 6m boom pole.

SECTOR II TECHNICAL DATA:
SECTOR 3 SECTOR 4 SECTOR 6
Input Voltage 220 – 240V AC +\- 10% @ 50Hz 220 – 240V AC +\- 10% @ 50Hz 220 – 240V AC +\- 10% @ 50Hz
Motor Voltage 12V DC 12V DC 12V DC
Motor Power Supply Battery-driven [*] – 2A Charger Battery-driven [*] – 2A Charger Battery-driven [*] – 2A Charger
Boom Pole Length 3.0m 4.5m 6.0m
Boom Pole Raise Time 1.2 sec 3 sec 3 sec
Daily Operations – Max 3000 3000 3000
Duty Cycle – Mains Present 80% [**] 80% [**] 80% [**]
Housing Specification [***] Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel
Barrier Pole Specification Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape
Onboard Receiver Specification CENTURION code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity CENTURION code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity CENTURION code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity

[*] – Can operate off a solar supply, consult Centurion Systems for assistance. [*] – 7Ah battery (can be upgraded for longer power failure autonomy). [**] – Based on 25Β°c ambient temperature and unit not in direct sunlight. [***] – Housing available in a Grade 430 stainless steel for coastal areas with no airborne salt and Grade 316 for extreme corrosion environments.
